When you are a hardware builder, your initial actual make or break moment is not necessarily fundraising or marketing. It is the first time that your board returns after being fabricated, and either it works or it becomes a quiet space heater.
After more than ten years of writing about engineering brands and attending countless prototype reviews, I have learned one thing firsthand: startups do not fail because they chose the wrong capacitor. They lose weeks due to inaccurate prototyping speed, poor stackup choices, and overlooked manufacturability. This is why a disciplined rigid flex PCB prototype approach, often supported by fast-turn partners like FastTurn PCB, has become critical for teams early in development, especially when enclosure space is limited and reliability is essential.
This guide talks about the factors that are important when prototyping PCBs when starting a business, when you need rigid-flex, how you can go through the steps of idea-to-working rev in less time without taking a risk on quality.
Reason: PCB Prototyping Is Unlike Other Startups
A prototype of a startup is not a test board. It’s a learning engine. Each revision will teach you about power integrity, signal integrity, EMI, mechanical fit, heat, assembly yield and user experience.
My most obvious mistake is the perception of prototyping as a small-scale production. It isn’t. Prototype objectives are not the same.
You desire a quick turnaround, clean debug access, predictable assembly and a layout that will not struggle with your enclosure. When you are iterating rapidly, then the worth is in reducing the loop: design, build, test, fix, repeat. Other competitive advantages include quick-turn services such as FastTurn PCB that are important when the time-to-demo is the critical deadline.
When a Rigid-Flex PCB Prototype Makes Sense

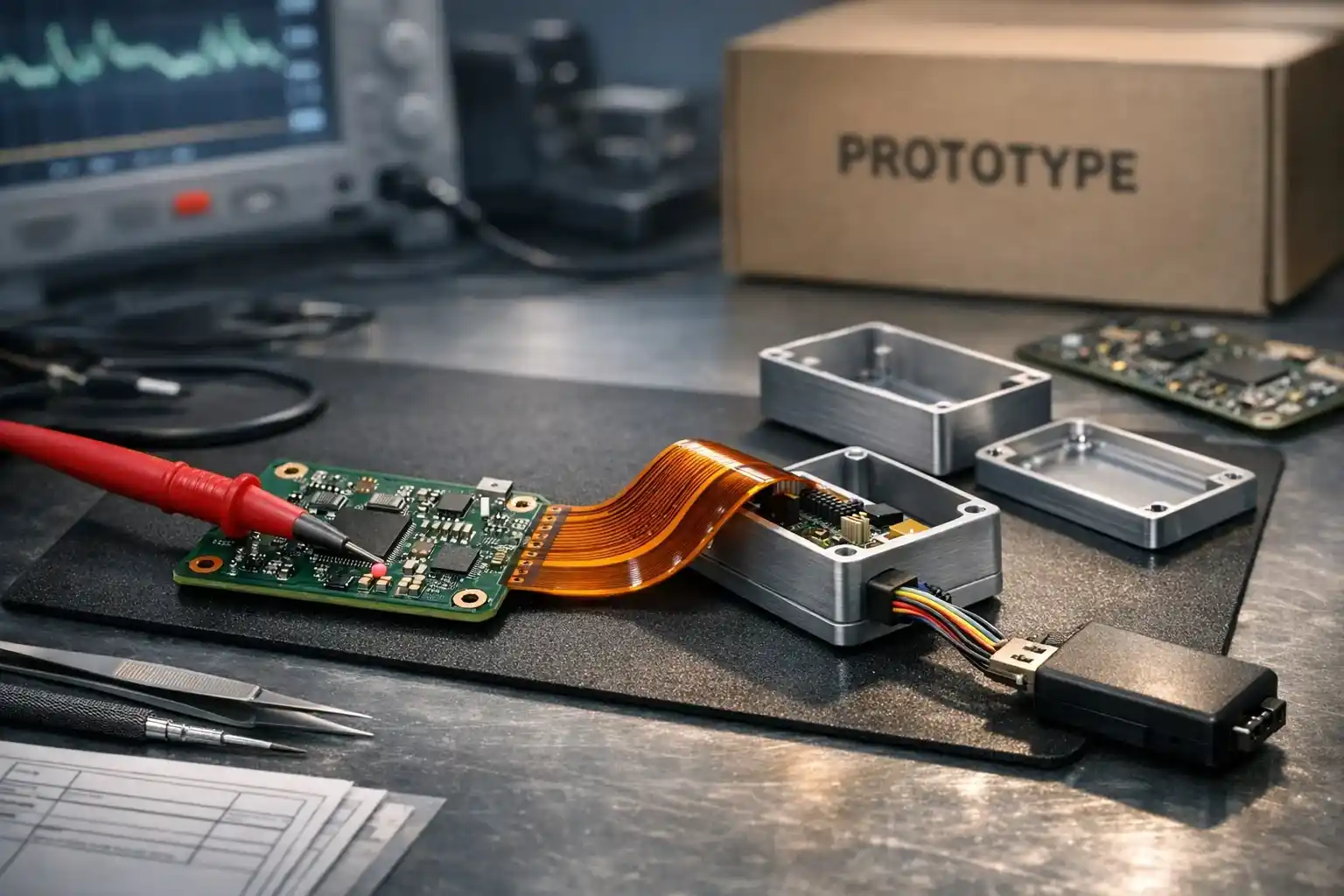

A rigged flex PCB prototype is a prototype with rigid components (such as those of standard FR-4 boards) and flexed and folded polyimide components. Rigid-flex is frequently thought of in startups that deal with small products like wearables, medical devices, drones, robotics, cameras, or any other product with connectors and cables as a point of failure.
Rigid-flex may be justified in a situation in which:
A cable harness would be too heavy or too unreliable, you need to shrink the board in a tight housing.
Fewer connectors you would like, since each connector is more expensive, requires more assembly time, and can be an intermittent fault source.
It has motion or vibration, flex can decrease mechanical loads where rigid interconnects would not.
You are constructing a high-quality product and would like more internal packaging to be cleaner and have less parts.
The greatest advantage is not the mere fact that it is smaller. It’s stable. By eliminating connector variables, you have more reliable test results and this also makes debugging faster.
Rigid vs Rigid-Flex: Practical Comparison of Prototyping
Cost and lead time trade-offs
Flexible PCBs are more expensive and difficult to get. A typical rigid board is the first step when verifying a circuit concept.
Rigid-flex is more expensive due to material, complexity of the process and tightening of fabrication controls. Rigid-flex prototype is however inexpensive in future as it avoids redesigning when rigid board will not fit or survive at the final mechanical design.
Reliability and assembly
Board-to-board connectors used on rigid boards are okay, but may experience looseness, misalignment or failure due to vibration. Rigid-flex minimizes those risks, but requires more careful note taking of fabrication, bend regions, and layer intersections.
Mechanical fit and real world realism
In the case of a challenge involving the shape of your product, rigid-flex prototypes will provide you with a more realistic build of your product, early-production-like. The distinction between a smooth investor demo and a prototype which only runs on an open bench is that realism.
What Makes a Fast-Turn Prototype Successful?
Fast will not work when the board cannot be tested or built. Speed needs structure. Here’s what matters most.
Design to manufacture at the very beginning
Startups are known to postpone DFM due to the fact that it is just a prototype. And that is what results in tombstoned passives, bridged fine-pitch pins, or vias which lead to solder wicking.
Take reasonable trace/space choices, choose feetprints that can be handled by your assembler, and do not push exotic constraints when you really do not need them. The quickest turn build is the one where the fab house is not required to email you to clarify something.
Be precise regarding stackup and controlled impedance
In case you have fast interfaces, controlled impedance is not a choice. Even models are supposed to be electrically realistic of your product.
Indicate stackup, impedance, and copper weights. When you have a rigid flex pcb prototype, it is important to indicate the start and end of flex, and the places of stiffeners on the flex.
Plan for test and debug
In the case of the prototypes that rescued the schedule, anecdotally, they were not the prettiest. Instead, they were the ones whose test points were labeled, whose programming headers were easily readable, and whose space allowed probes to clip.
Allow space to measure rails, currents, clocks and communication lines. Without being able to test it, you cannot iterate.
Flexible-Rigid Particulars Startups Should Not Neglect
Rigid-flex is robust, yet it is inexemptive of loose documentation. The notes on your fabrication should cover:
Bend radius expectation, excessively tight a bend may crack copper.
Flex area guidelines, including no vias in bend areas and routing direction.
This means that coverlay requirements are necessary because flex has to be well insulated and provided with protection.
Installation of stiffeners, particularly beneath connectors and components.
To minimize the stress at the rigid-to-flex boundary, Layer transition design.
When you are new to rigid-flex, be able to get capability advice early on with your manufacturer. An excellent quick-turn partner will inform you of what is safe before you get to know about it the hard way.
How FastTurn PCB Helps Hardware Teams
Fast-turn manufacturing also contributes to two significant tasks.
The first is that it decreases calendar time between revisions. That maintains the momentum at a high rate, something that most teams do not recognize.
Second, it causes enhanced process discipline. When you are certain that you can construct in a short time, you think of what to test next rather than wait till boards are available.
In the case of a hardware startup, the capability to make a FastTurn PCB order to do a revision and continue engineering would be the difference between a pilot run and a missed opportunity in a market window.
Conclusion: The Intelligent Road to a Work Prototype
Staged realism is the quickest route of most startups. Begin with an easy circuit just on a rigid board to test the circuit. Occupy a production-like design when mechanical constraints and reliability start to play a role.
In case your product requires folding, tight packaging, and fewer connectors, early commitment to a rigid flex pcb prototype, FastTurn PCB strategy can save risk and accelerate your learning. It is not about perfection on the first draft. It is aimed at having repeatable, reliable loop of iterations that will put you on a steady design before your time runs out.
FAQs
What does a rigid flex PCB prototype do?
A PCB prototype is tested in a rigid flex PCB case which requires the board to bend or fold within a product. It assists in authenticating actual mechanical fit, decreases connector dependency, and may enhance dependability in miniature or vibration liable devices.
Do you only use rigid-flex on high-technology products?
Not at all. It is typical of premium products, though it is used by startups when it is time to package, be dependable, or just assemble without difficulty. The major layout and wiring headaches can be eliminated even by a basic two-rigid-section layout that has a flex bridge.
What shall I do to prevent the failure of rigid-flex prototypes?
Begin with unbending fab notes, avoid vias in bends, follow bend radius rules, and add stiffeners when necessary. Another idea to keep in mind is to plan test points and connectors in such a way that debugging is not an exercise in mechanical absurdity.
When is it appropriate to have faster turn PCB service?
Use a fast-turn service, when your project requires fast iteration, you have a deadline on your demo or when you are actively debugging. The best use of a fast turn around is when you have a test plan that is to be used in the next revision.
Will I be able to prototype rigid-flex and then make my enclosure?
Yes, and oftentimes it is good if it is close. Even a preliminary mechanical estimate is sufficient to prove folding strategy, connector placement and cable elimination before industrial design has been completely locked.
